MyTana’s lineup of sewer and drain jetter nozzles offer a range of applications for work in 1½” to 18” lines. Whether you need maximized pulling and flushing, general cleaning or cutting – you will find a nozzle to do the job.
Read on for information about the different styles we carry, and things to consider when looking for a nozzle.
To purchase nozzles
Visit our nozzle shop page.
Don't see what you need?
Complete this form for pricing and availability.
As you look for a nozzle, keep in mind
- what you need to do
- what are the pipe characteristics you will be cleaning (size/slope/material)
- when using the size and length of hose you have, what pressure and flow can your jetter deliver at the nozzle
Some nozzles combine angles to “multi-task”, but most likely you will have to use 2 or more nozzles on any job, each doing a different task to produce a clean line.
Water pressure does the blasting and loosening of material caked on to pipe walls.
Water volume (gpm) flushes out loose debris.
Rotation assists clearing hard blockages as well as hardened deposits.
You want to harness as much energy from your pump and convert it to pressure and/or flow without creating back pressure, or letting that potential energy flow out unrestricted from jets that are too large for your pump.
Smaller jetters working in smaller lines generally use higher pressure and lower flow to clean.
Flat grade pipes call for lower flows to allow for draining.
Greater water volume is generally more important than pressure in larger pipes, and you will want an efficient nozzle to get as much debris cleared using the water you have, ideally avoiding refills.
The cleaning pressure (psi) your pump can deliver is dependent on hose length and its diameter. Pressure loss will occur from a pump as the hose length is increased.
Refer to the specs listed for each nozzle. If you need something different, just let us know!
In general:
- Lower ° angles– more pulling power
- Higher ° angles – more cleaning power
- Forward jets – penetrating, pushing debris forward
- Rotating jets – cutting, loosening of hardened deposits, additional flushing action
Rules of thumb on angles:
- 15° to 25° — Maximum pulling necessary for long runs, or in combination with side or front jets to ensure forward propulsion.
- 25° to 35° – Flushing of sand and sludge, especially with rotating nozzles.
- 35° — Provides a good combination of flushing and thrusting action with good pulling power for use on medium runs.
- 45° or 55° — Good cleaning power with reasonable pulling power, good flushing action with reduced pulling power.
- 45° to 80° with rotation – clear heavy calcium deposits, de-scaling.
- 90° — A single 90° jet helps navigate corners, multiple side nozzles provide a rinsing and polishing action. Must have rear jets for forward movement.
- Forward jets — Penetrate softer obstructions. Rotating forward jets cut through hardened blockages. There should be at least 2 rear jets for each forward jet to provide forward movement.
Styles
Our nozzles fall into 2 broad categories:
– Drilled orifice nozzles are inexpensive, but wear quickly especially if not maintained.
– Nozzles with replaceable inserts are engineered to tackle the toughest obstructions with power and efficiency. With regular maintenance and repair, they have a long life span, reducing the cost of ownership.
Nozzles with Replaceable Inserts
Reaper Nozzle
A powerful multi-purpose nozzle (cutting, cleaning, flushing). Heavy-duty, high-impact stainless steel housing and tungsten carbide seat and tip.
– Rotating forward jet blasts a cone of water up to 4,000 PSI
– 2 NPT sizes with 6 gpm to 18 gpm options
Warthog Nozzle
Warthog nozzles use a controlled rotation technology which gives the jets time to penetrate and break up deposits.
– Superior results in nearly all applications, cutting, cleaning, removal
– Easily serviced to give you long-term use in the field
Cut roots, clear ice and blockages. Small form navigates pipe bends. 1/2" NPT size suitable for use with larger pumps.
Rotating jets:
- 1 forward jet @ 15°
- 2 rear jets @ 30°
3/8" NPT – 200' hose
- 3-8 gpm @ 1200 - 5000 psi
- 12 gpm @ 1200 - 1500 psi
1/2" NPT – 250' hose Maximize a larger pump's capacity
- 12, 14, 18, 20 gpm @ 3,000 - 4000 psi
enz® Nozzles
Engineered for maximum efficiency. Construction processes ensure wear resistance and long life. Ceramic orifice inserts offer outstanding durability.
– Rotating nozzles have dynamics to disintegrate deposits
For operation with recycled or fresh water, and lower flow rates. Rotating nozzle has vibration to break up grease and roots. Optional-use forward jet for penetrating or navigation.
- 1 forward jet @ 7° (optional-use)
- 2 side jets @ 50°
3/8" NPT – 400' hose / 8 or 12 gpm @ 4,000 psi
1/2" NPT – 600' hose / 12- or 18 gpm @ 4,000 psi
Four front jets give a powerful forward attack. Sharp edges cut, break and penetrate through every kind of blockage: completely clogged pipes, interlaced roots or frozen lines.
- 4 forward jets @ 15°
- 3 rear jets: 3/8” @ 20° | ½” @ 25°
3/8" NPT – 400' hose / 8 or 12 gpm @ 4,000 psi
1/2" NPT – 400' hose / 12- or 18 gpm @ 4,000 psi
For removal of loose rubble, gravel and soft deposits, or for a pre clean before the use of chain flail head or cutter. Has strong traction and effective all-around cleaning.
- 6 rear jets @ 25°
- Optional-use forward jet @ 0°
3/8" NPT – 400' hose / 12 gpm @ 3,000 - 4,000 psi
1/2" NPT – 600' hose / 12- or 18-gpm @ 4,000 psi
Also known as the Bend Rotodrill or Rotodrill REV nozzle. Removes sludge deposits and clogs in 3” to 6” lines. The sharp edge design first breaks through blockages, the powerful rotating backward jets then cleans and flushes debris when bringing it back.
- 1 rotating "rear" jet @ 7°
1/4" NPT – 4.5 gpm (150' hose) or 8 gpm (200' hose) @ 3,000 psi
3/8" NPT – 4.5 gpm (150' hose) or 8 gpm (250' hose) @ 3,000 psi
Versatile and powerful nozzle bodies that can be adapted to perform a variety of applications in a range of pipe diameters. Removes limescale, cement slurry, roots and more.
- 1/4" – rotating jets: 3 rear, 3 side – suitable for 2” - 4” lines
- 3/8" – rotating jets: 4 rear, 2 side – suitable for 2.5” - 6” lines
Drilled Orifice Jetter Nozzles – standard forms
Button Nose Nozzle
Short body and smooth round nose reduce hang ups. Ideal for working in turns, traps and elbows.
– Knurled sides for hand-tightening
– Suitable for most general cleaning applications
1 forward jet and 3 rear jets at 25°
Excellent pulling power lets you quickly get to and penetrate blockages to establish flow in a fully blocked pipe.
Good for general drain cleaning while maneuvering elbows and tees.
4 rear jets at 25°
Clean at a greater distance with maximum pulling power.
Good for general drain cleaning.
3 rear jets @ 25° | 3 rear jets @ 45° | 1 forward jet @ 0°
Dual rear angles create a wider area of turbulence helping to keep sand, gravel and heavier debris suspended and moving while cleaning a pipe. Still pulls well.
1 side jet @ 90° | 3 rear jets @ 45°
Ideal for tight turns and elbows, good flushing action and reasonable pulling power. Side jet pushes hose towards one side of the pipe and combined with twisting of the hose it can be steered into a tee or branch fitting.
Suitable for general drain cleaning applications.
6 rear jets @ 45°
Excellent flushing, good pulling power. Provides more effective cleaning of pipe walls after flow has been established in a blocked pipe.
A great general cleaning nozzle.
Each of the button nozzles described above are available from MyTana in these sizes, tuned to deliver the specs listed:
1/8" NPT
1,500 psi @ 2 gpm — 50' to 75' hose
1/4" NPT
1,500 psi @ 2 gpm — 115' to 150' hose
– or –
3,000 @ 4.5 gpm — 115' to 150' hose
3/8" NPT
3,000 psi @ 4.5 gpm — 200' hose
– or –
3,000 psi @ 8gpm — 250' to 300' hose
1/2" NPT
3,000 psi @ 8 gpm — 300' hose
Hex Nose Nozzle
The mushroom shaped head allows for steep rear jet angles giving maximum pulling power.
– Requires wrench tightening
15° thrusting angle for maximum pulling power with one forward jet to penetrate blockages.
15° thrusting angle for maximum pulling. No penetrating jet.
3 forward jets for penetrating grease or ice blockages.
Each of the hex nose nozzles described above are available from MyTana in these sizes, tuned to deliver the specs listed:
1/8" NPT
1,500 psi @ 2 gpm — 50' to 75' hose
1/4" NPT
1,500 psi @ 2 gpm — 100' hose
– or –
3,000 @ 4.5 gpm — 150' hose
3/8" NPT
3,000 psi @ 4.5 gpm — 200' hose
– or –
3,000 psi @ 8gpm — 300' hose
1/2" NPT
3,000 psi @ 8 gpm — 300' hose
Radial Nose Nozzle
Heavy weight nozzles ideal for larger jetters and jet-vac units.
– Smooth finish
– Wrench flats for tightening
– All are ½” NPT, other sizes are available
For a plugged line situation or to utilize the maximum run capability of your system.
1 forward jet | 4 rear jets @ 25°
A general purpose, dual angle nozzle. Combines both thrust and flushing forces for superior pulling and cleaning power
1 forward jet | 3 rear jets @ 25° | 3 rear jets @ 45°
35° Flushing angle with good pulling power. An efficient general-purpose cleaning nozzle.
6 rear jets @ 35° (no forward jet)
25° flushing angle with 3 forward jets to loosen hard grease or ice.
Each of the Radial nose nozzles described above are available from MyTana with 1/2" NPT connection, tuned to deliver the specs listed:
up to 12 gpm / 3K- 4K psi — 400' hose
– or –
up to 14 gpm / 3K- 4K psi — 400' hose
– or –
up to 18 gpm / 3K- 4K psi — 400' hose
Other sizes or specs are available, please call to order.
Drilled Orifice Nozzles – specialized forms
Degreasing / De-Icing Nozzle
Jet nose style nozzle is effective for flushing grease or ice on shorter runs.
– Good for more heavily obstructed lines
– Limited pulling power / distance
3 forward jets @ 10° | 6 rear jets @ 45°
Effective for flushing grease or ice on shorter runs. Forward jets tend to push debris forward while rear jets help clean the sidewalls. Limited pulling power/ distance range. Longer length nozzle with angled nose is good for more heavily obstructed lines.
This nozzle is available from MyTana in 4 sizes and 6 different pressure/flow specs.

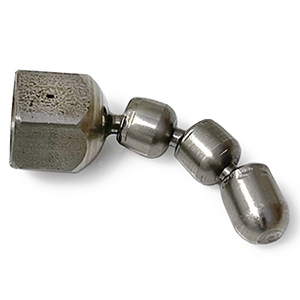

Drop Head Nozzle
Flexible joints conform to the shape of the pipe so you can navigate P-Traps, vertical drops and tight bends
– Suitable for smaller lines
Rotating Nozzle
Maximized sidewall cleaning. Spinning side jets create a wall of water for full coverage giving the final polish of a line.
– No heavy blasting action
2 side jets @ 90° | 2 rear jets @ 45°
Rotor jets feature a spinning head that provides a 360° of coverage. Use for finishing or polishing a pipe that has had some preliminary cleaning. NOT for primary use.
Good pulling power, for applications that require a good rinsing action.
This nozzle is available from MyTana in 3 sizes and 5 different pressure/flow specs.
Maintenance
Inspect your nozzles for cracks, plugged jets or worn threads and maintain or replace as necessary.
We carry maintenance kits for Warthog and Reaper nozzles to extend their working life. Kits include replacement components or fluids. See our Nozzles shop page.
Tip cleaners (below) can help keep drilled orifices open and clear. Thread sealant is recommended for use on threads of button nose nozzles.
-
