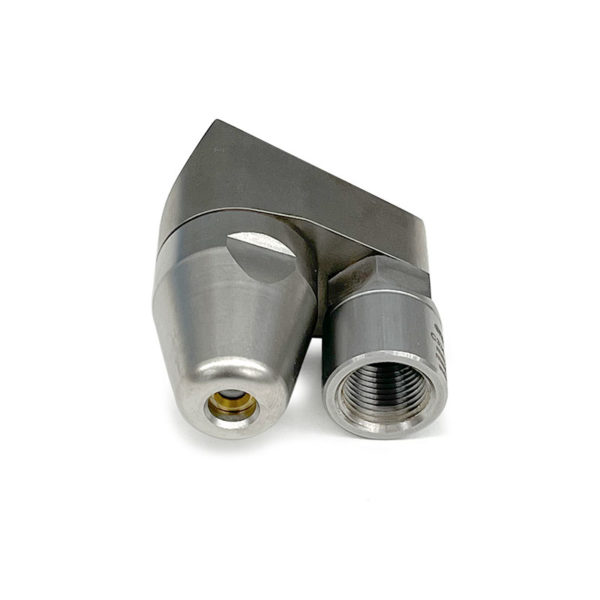

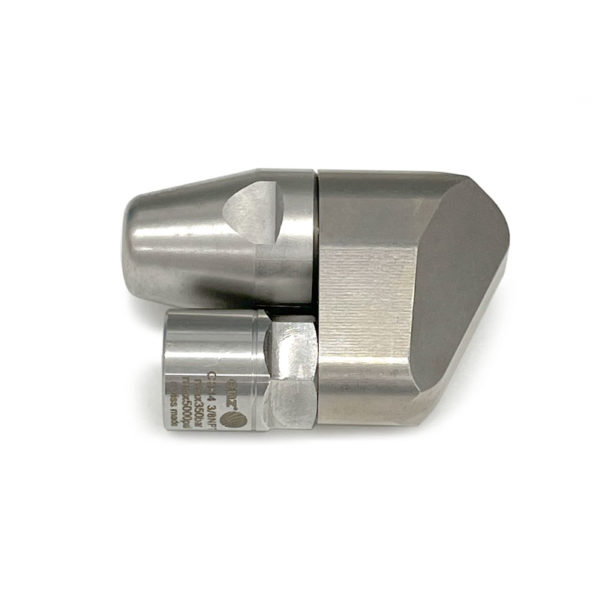

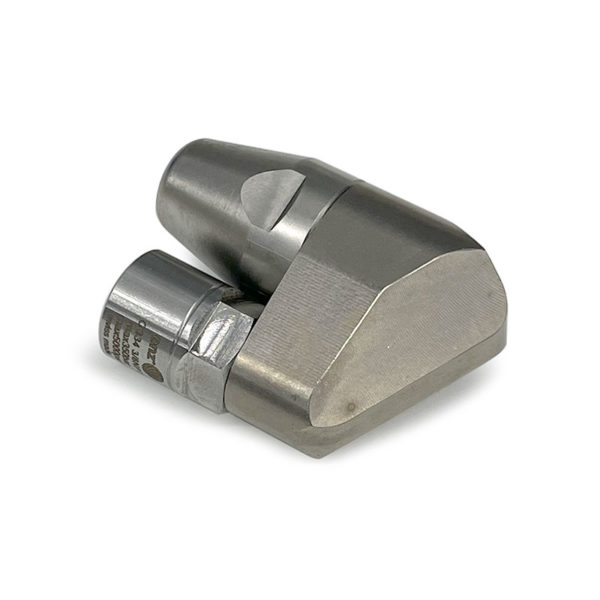

reverse Rotodrill Nozzle Reverse Rotodrill nozzle at an angle Bend Rotodrill nozzle from the rear showing the rotating "front" nozzle that now flushes to the rear

enz® Reverse Rotodrill Nozzle

$475.00 – $485.00

This rear-facing Rotodrill nozzle breaks through blockages in 3” to 6” lines. The powerful rotating backward jets then cleans and flushes debris when bringing it back. Also known as the Bend Rotodrill nozzle.

  • 1/4″ NPT 3,000 psi – 4.5 (150’ hose)  or  8 gpm (200’ hose)  options
  • 3/8″ NPT 3,000 psi – 4.5 (150’ hose)  or  8 gpm (250’ hose)  options

Description

The enz reverse Rotodrill nozzle is appropriate for removal of sludge deposits and clogs in 3” to 6” lines. The sharp edge design goes through the pipe first knocking out and breaking through blockages.  The powerful rotating backward jets then cleans and flushes debris when bringing it back. This nozzle gets around bends well and is simple to service. This nozzle is also known as the Bend Rotodrill or Rotodrill REV nozzle.

Applications

  • Clogged pipes and heavy soiling
  • Clear pipes blocked by roots or ice

The reverse Rotodrill nozzle has 1 rear-facing rotating jet at 7°.

You may also be interested in the standard form Rotodrill nozzle.

Part No.  E-BR025- /   E-BR038-

enz manufactures their nozzles with materials and heat treatment processes selected for wear resistance and long life. The bend Rotodrill Nozzle has ceramic orifice inserts ensuring outstanding durability, especially if working with less than clean water. Enz nozzles have considerably higher efficiency compared with those nozzles with drilled holes and the service life is several times longer.
