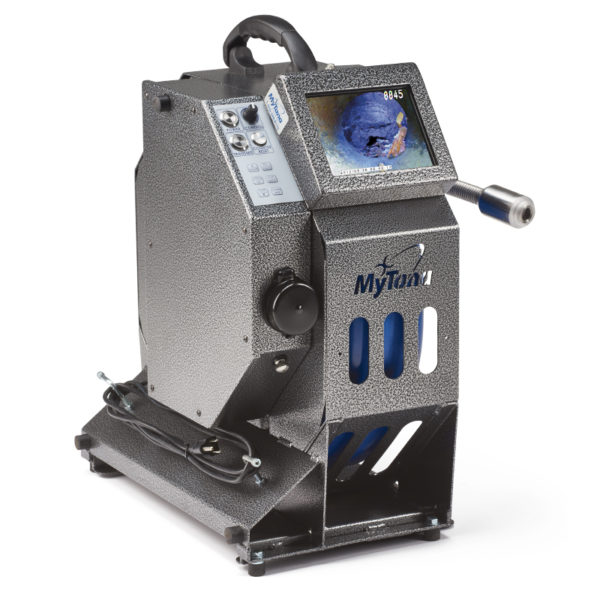

MS11-NG2 Mid-Sized Inspection System

Name: MS11-NG2 Mid-Sized Inspection System
Brand: MyTana
SKU: MS11-NG2 200
Availability: InStock

$8,221.00

Suitable for 3″- 6″ lines. This one-piece inspection system is rugged and delivers exceptional image clarity. Color, self-leveling 1½″ dia. camera head has 512Hz transmitter built-in and is detachable from the 200′ field replaceable push-rod.

Record to internal drive, removable USB drive, or transmit wirelessly to mobile devices.

Description

The MS11-NG2 Mid-Sized Inspection System gives you big performance from one grab-and-go package. It is suitable for 3″ to 6″ lines, but an optional MS11+ Combo Kit includes an interchangeable mini camera head to inspect 1½” to 2″ lines.

Like most of our inspection systems, this system has 2 on-board USB ports and an internal 64GB drive. Record to either location, or both at the same time. A router is included to stream images and recordings to your mobile device using our MyTana Viewer App, available for Android or iOS .

Integrated components

A daylight readable monitor is integrated on the frame, right next to the control panel. It displays exceptionally clear imagery and a digital footage counter.

The lightweight yet rugged frame (powder-coated aluminum) and durable push-rod have been factory and field tested to make sure the MS11-NG2 System holds up in harsh operating environments. It weighs just 45 lbs with 200ft of push rod. The push-rod can be replaced in your shop, order replacement sections here.

The camera can be powered with either household electric current or on-board battery. Recharge the battery by plugging in to standard wall outlet.

Partner with our MT 512+ Locator to add locating capabilities using the system’s built in 512Hz transmitter. This MS11-NG2 Mid-Sized Inspection System is one of our best selling cameras.

Note: Our NG Inspection Systems are not backward compatible with the MY30 and earlier “classic” analog based cameras.

View MS11-NG2 Spec Sheet PDF

Reel Frame

Powder-coated aluminum
45 lbs (with 200’ push rod)
Push Rod – 3/8″ dia., field replaceable, durable, smooth low-friction coat reduces catching

Dimensions 13″W × 20”L × 21”H

Camera head

1½” dia. – suitable for 3″ to 6″ lines
Stainless steel, flexible neck
Screw-on/off connection to push rod
Color, self-leveling
512Hz transmitter/sonde built in
Adjustable LED lights (adjust on control box)
3 sizes of ice balls to guide, center and protect

Control Box

Monitor

5.25” × 4” (6.5” diagonal) – daylight readable monitor
Digital footage counter displayed
File management menu
Title and text overlays on screen and recording – customizable w/USB keyboard (not included)

Controls

Stainless-steel buttons for power, sonde transmission, footage counter reset
Rheostat control for camera head LEDs
Water resistant membrane protection on video control buttons

Additional

64GB internal memory drive
Dual USB ports
Microphone

The MS11-NG2 ships with:

3 sizes protective “Ice Balls”- built-in, field replaceable translucent, polycarbonate light ring covers
Power cord
USB removable drive
Router for WiFi recording

MS- NG2 User Manual
