Liner and Resin

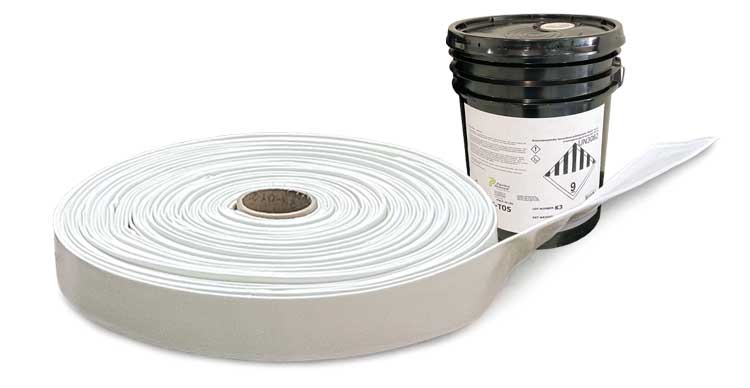

MyTana now carries lining material and resin for contractors working in trenchless pipeline rehab.
Contact MyTana with questions or to place a phone order.
Liner
We work with MaxLiner® to provide the highest standard of liner, backed by extensive quality and certification processes. Sold in 330 ft rolls — length may vary slightly: +/- 10’.
We carry:

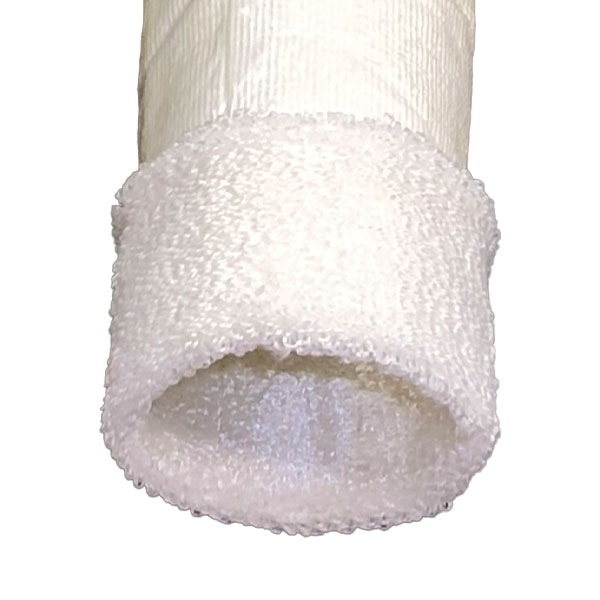

Max WovoX®
An ultra-flexible, extensible liner bonded to a seamless impermeable PU coating. The circular-knitted construction of polyester and elastomeric yarns makes it ideal for transitioning several diameters and lining around multiple bends up to 90°.
Applications
- Transitions /change in several diameters
- Multiple bends up to 90°
- Open-End (Blindshot) with Cal Tube
- Closed-End
- Pull-in-Place

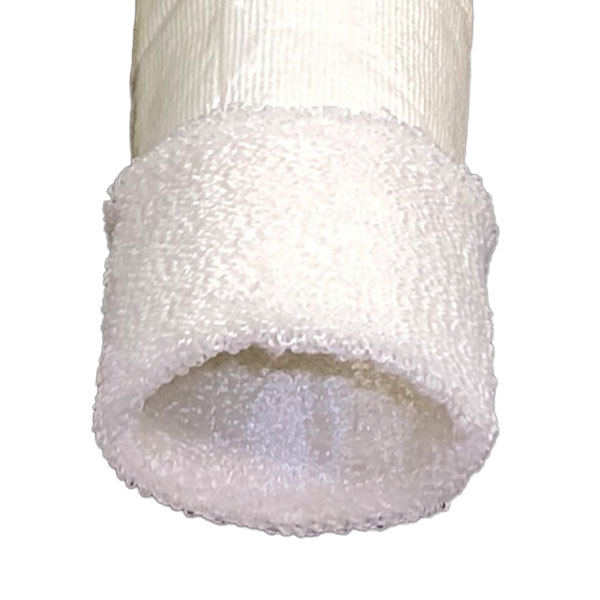

Max WovoLiner®
An ultra-flexible liner bonded to a seamless impermeable PU coating. The circular-knitted construction of polyester and elastomeric yarns makes it ideal for lining around multiple bends up to 90°.
Applications
- Multiple bends up to 90°
- Open-End (Blindshot) with Cal Tube
- Closed-End
- Pull-in-Place

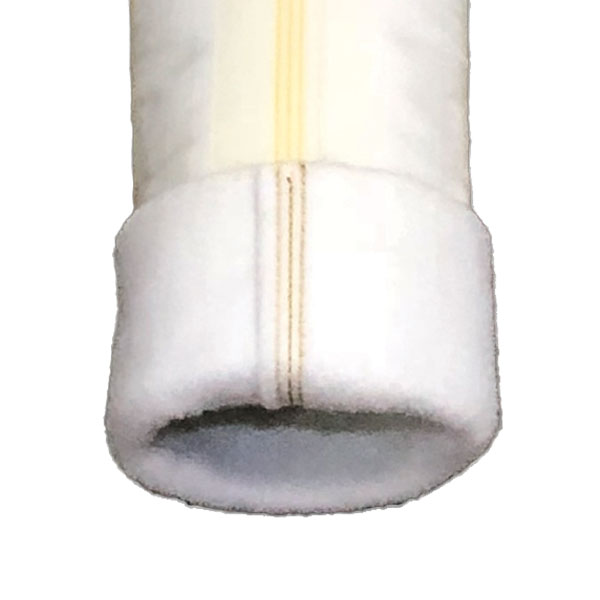

Max Flex4D™
Non-woven, needle punched PE felt liner with an elastic PU coating. Can transition up to four diameters (4D) while maintaining finished thickness and negotiating bends up to 90°.
Applications
- For transitions /change in diameter
- May be used on sweeping bends up to 90° with slight wrinkling
- Open-End (Blindshot) with Cal Tube
- Closed-End

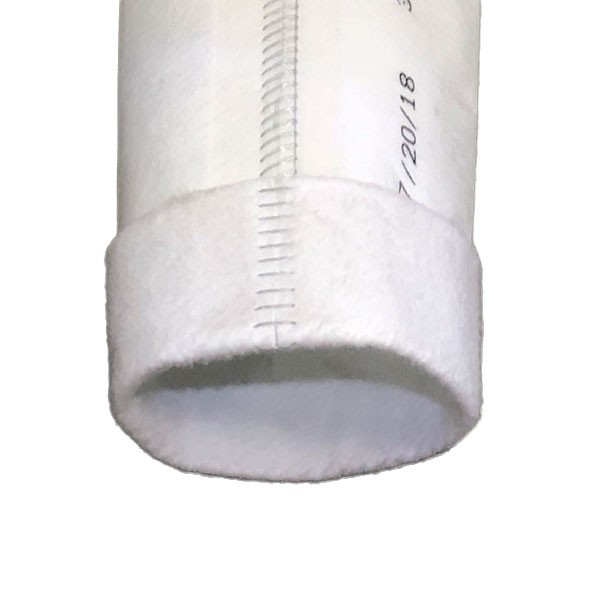

Max SCRIM Liner
Non-woven, needle-punched polyester fiber felt with PU coating. There is a 100% continuous polyester reinforcement filament (SCRIM) integrated into the fabric to limit longitudinal stretch during installation. Ideal for straight shots, can be used around bends up to 45°.
Applications
- For landing the liner at a definitive point and straight piping applications.
- Sweeping bends up to 45°
- Open-End (Blindshot) with Cal Tube
- Closed-End

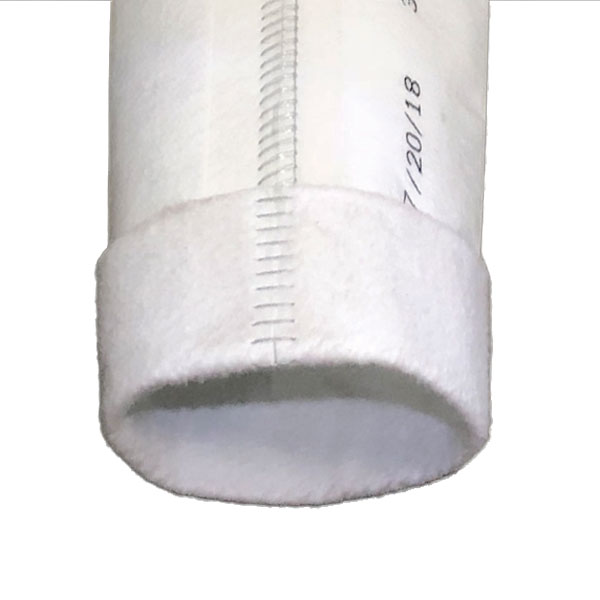

Max LinerTube™
Non-woven, needle-punched polyester fiber felt offered with PU coating designed for sweeping bends and very minimal stretch.
Non-woven, needle-punched polyester fiber felt designed for sweeping bends and very minimal stretch.
Applications
- Straight piping applications with minimal stretch.
- Sweeping bends up to 45°
- Open-End (Blindshot) with Cal Tube
- Closed-End
Max CalTube™ Calibration Tube
Helps keep liners tightly pressed against the host pipe during the curing process. For use in two stage open-ended (blindshot) inverted liner and pull-in-place applications.

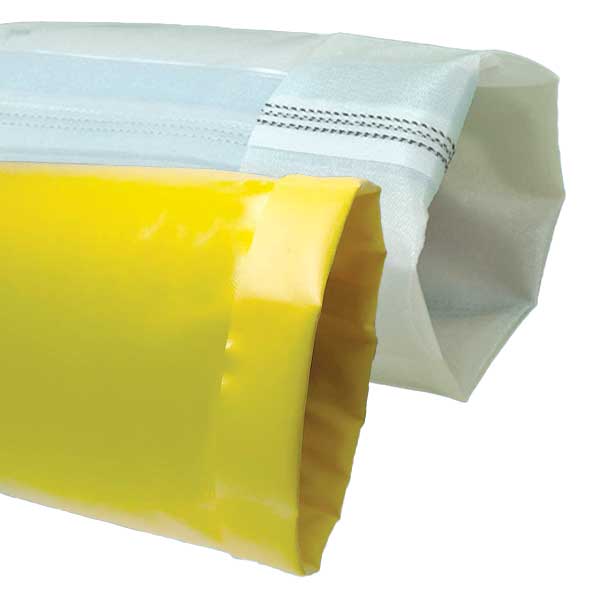

HF
Ultra-flexible, light duty PE fabric with PVC coating and a high frequency welded overlap seam.
- Clear | LED light cure & single stage inversion with liner, hot water, ambient cure
- Yellow | hot water, ambient cure. Not for LED light cure.

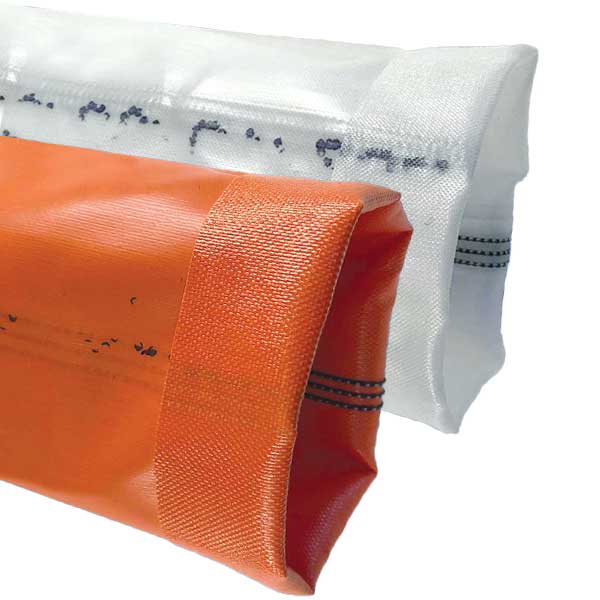

Stitched
Flexible PE fabric that is PVC coated with a triple linear stitch and overlapped taped seam
- Clear | LED light cure, single stage inversion with liner, hot water, hot air, steam and ambient cure
- Orange | Hot water, hot air, steam and ambient cure. Not for LED light cure.

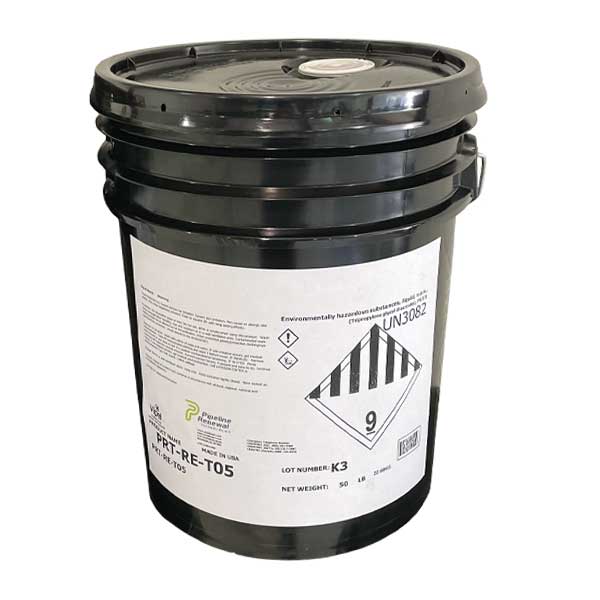

Resin
Single-component resin formulated to cure with UV LED light that offers excellent mechanical properties and chemical resistance.
- No Styrene, ultra-low odor
- Rapid cure times
- Compatible with all MyTana liners from MaxLiner
Sold in 40lb buckets
